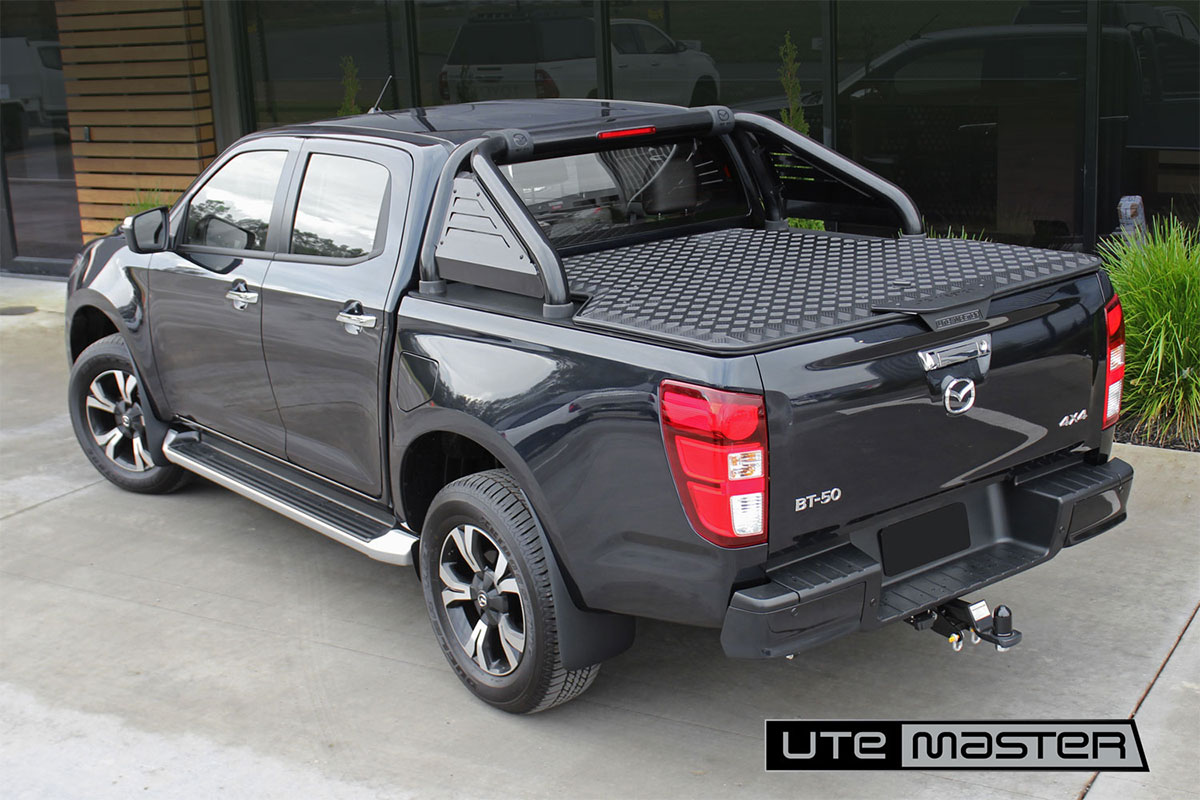

To suit 2021+ Mazda Factory Sports Bar
Sports bar not included.
Part #LLX-MBC9SBGAX
Use the dropdowns below to select your vehicle.
You will then be able to see what's available for your vehicle model once you have.
Hit enter to search or ESC to close
Your cart summary
Suits 2011-2023 Mazda BT50.
Design Registration - 43018
Does your current tub setup live up to the demands of your lifestyle?
The Utemaster Load-Lid is no ordinary tonneau cover!
Whether you're using it for work or adventure, the Load-Lid is a practical alternative to a roller shutter and it will unleash your ute's potential.
Check out the video below to see it in action:
TO GET A QUOTE, CONFIGURE YOUR VEHICLE
(freight to be calculated at checkout)
Click to enlarge images
Whether you're using your ute for work or adventure, choosing the right hard cover isn't easy...
In this video, we'll help you decide whether the Load-Lid is right for your lifestyle.
This Load-Lid has a Dynamic load rating of 200kgs and a static load rating of 400kg.
The dynamic load rating refers to the amount of load you can safely carry when you need to stop quickly at open road speeds – like an accident.
Dynamic load ratings are calculated by subjecting the hard lid to a series of formulated tests that represent real life: twisting, pulling, pushing and anything in between!
Typically, a dynamic load rating will be a lot lower than a static rating, BUT it would have been tested at weights a lot higher than the static rating to pass the dynamic test.
Hard-working tradies and adventurers require tough gear that works on and off the job site!
The Utemaster Load-Lid is built tough - out of a 1-piece aluminium treadplate sheet that has a base thickness of 3mm.
The construction is similar to an aircraft and incorporates up to 7 meters of internal bracing and heavy-duty hardware which is bonded with a glue and then riveted together, meaning there are no shortcuts on strength.
Over the life of your ute, you’ll be getting tons of gear in and out of your tub!
That’s why it’s important to have a hard lid that provides easy access to gear.
To access the tub, the Load-Lid has a single twist handle on top. Simply insert the key and twist to release the locking mechanism, and then you can lift the Load-Lid straight up.
The Load-Lid has two gas stays positioned either side of the lid, these are to help lift it up when there is no load on top.
The loss of tools or adventure gear due to theft is not only a massive inconvenience, it’s expensive too!
The Load-Lid has catches on both sides so that when the lid is locked, it’s really hard to pry open.
The tailgate locking plate also prevents your tailgate from being opened when the lid is shut. Some vehicles now come standard with a central locking tailgate, but if you forget to lock the ute, this locking plate can save your day. However, if you require you can remove it.
You can also purchase an optional central locking accessory, which allows you to lock and unlock your Load-Lid using your car key remote.
Roller shutters have a reputation for being hard to seal because of their intricate mechanics, but the Load-Lid has one solid aluminium shell - so it’s far easier to seal and keep your gear dry!
The Load-Lid has a full bulb seal which runs right around the top of the tub. This stops water from getting in and keeps everything dry!
On the sports bar Load-Lid there are also built-in rain channels, these redirect the water around your sports bar and over the edge of the tub.
At the front of the Load-Lid is a weather seal preventing water from running into your tub when the lid is opened. On some models such as the Next-Gen Ranger and Amarok, Utemaster also supply additional sealing kits to seal factory holes.
Ute’s are designed to take a beating, so your hard lid should too!
Roller shutters are prone to jamming their fragile mechanisms on sand and dust.
A Utemaster Load-Lid™ is built tough so you can take it everywhere you go without having to worry about whether it will take the beating!
Some tub covers are generic - designed to work on multiple utes.
This is more of a convenience to the retailer than the person who’s going to own it. A generic fit can have water tightness issues and just look out of place on the vehicle.
Utemaster use 3D scanning to tailor each Load-Lid to each specific ute, so there’s a perfect fit every time!
The Utemaster Load-Lid comes in a tough Oasis Black powder coat, this is a lot more durable than paint because it’s baked on. The black finish matches the accents of the vehicle and finishes off the tough look.
If you're in the trades you'll understand that good quality tools are worth their weight in gold!
Quality gear means fewer breakdowns and more time getting the job done.
Investing in a quality ute setup is no different, the Utemaster Load-Lid has been tried, tested and thrashed by tradies in the toughest environments.
Whether you're using it to secure your tools or take a load on top, the Load-Lid will live up to your demands.
Should anything go wrong with the product you’ll be pleased to know our friendly team will be available to help you get your gear sorted.
All of our products are backed by a 3-year warranty which covers material, manufacturing defects and malfunctions.
Utemaster products are designed and manufactured in our state-of-the-art facility in New Zealand.
Everything from Design to comprehensive product testing is completed on-site. This ensures that every product is built to the highest standard and will be able to stand the test against the toughest elements.
We also have a warehouse in Sydney, where common models will usually be dispatched within three working days.
We sometimes get asked why our products cost more than other options on the market...
Our products aren’t flat-packed with generic design, they are model-specific and pre-assembled to the highest standard.
You are paying for an engineered product that will do exactly what we say it will! It’s all the little details we’ve mentioned in this video that make the difference, so don’t skimp on quality...Remember, the bitterness of low quality outlasts the sweetness of low cost! Your money is best invested in quality.
When it comes to quality gear, Nicholls Contracting don't accept anything less than the best - Hear what Alister Nicholls has to say about why he put a Utemaster Load-Lid™ on his Ranger Raptor!
Sports bar not included.
Part #LLX-MBC9SBGAX

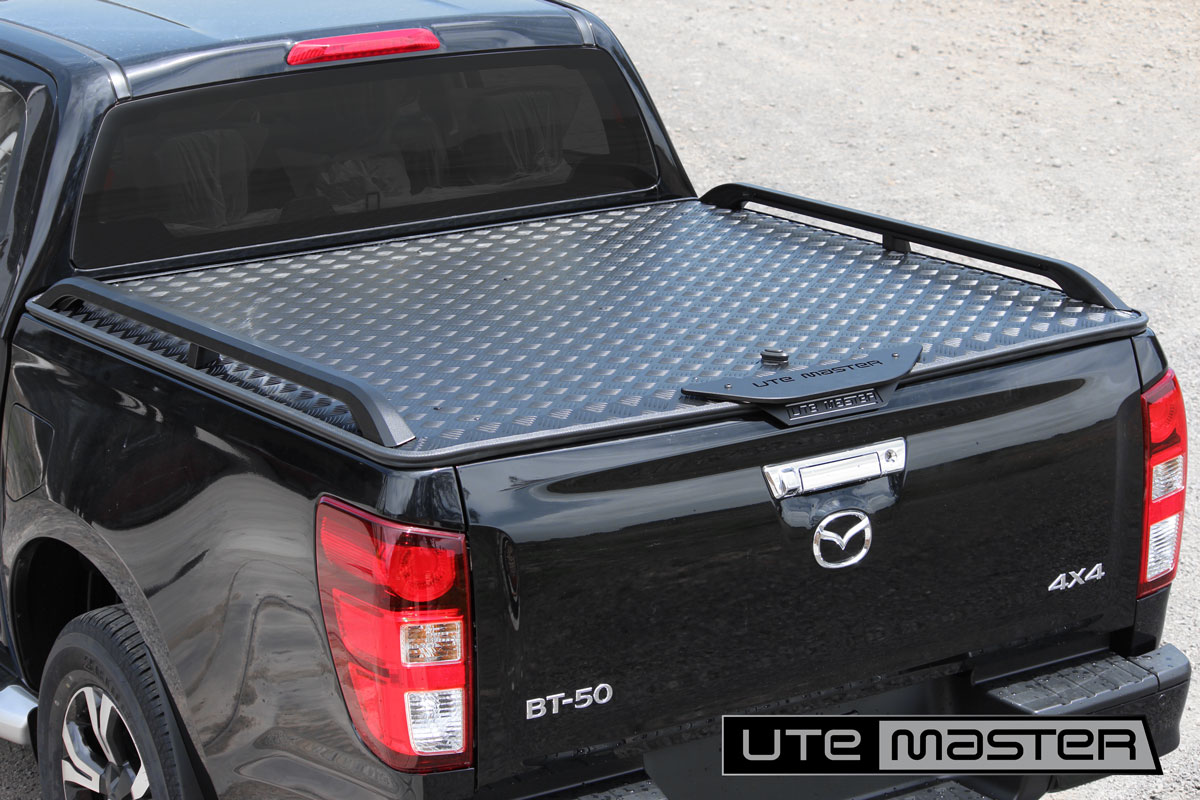

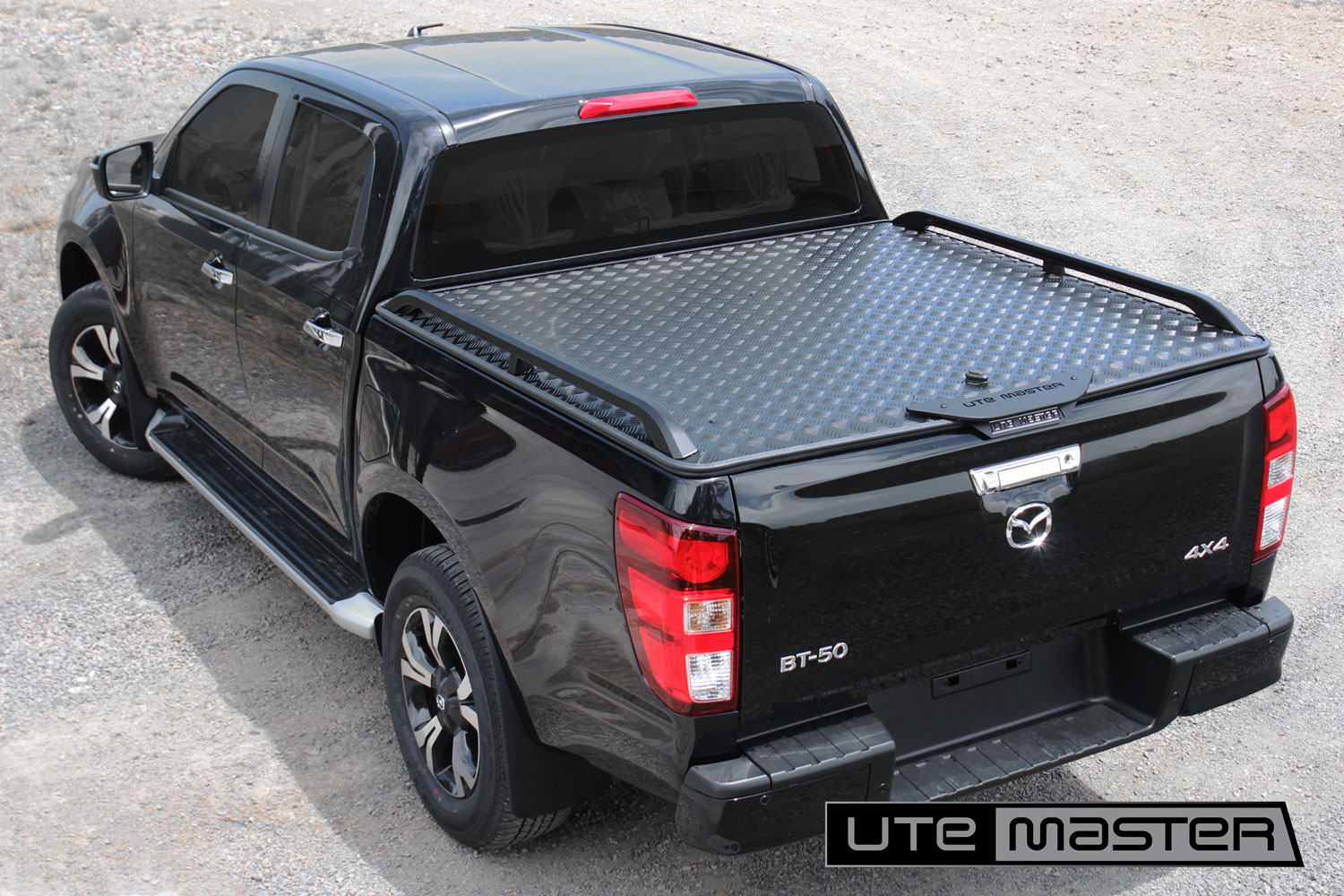

The Standard Load-Lid™ for the 2020+ Mazda BT50 is the ultimate work-horse solution. Rated to 200kg so you can take more gear on adventures. Compatible with a Utemaster’s huge range of hard lid accessories so you can get more work done faster.
Part#LLX-MBC9
Please note: The Oasis Black Powdercoating and Side Rails pictured are optional accessories that are not included as standard with the above part number.

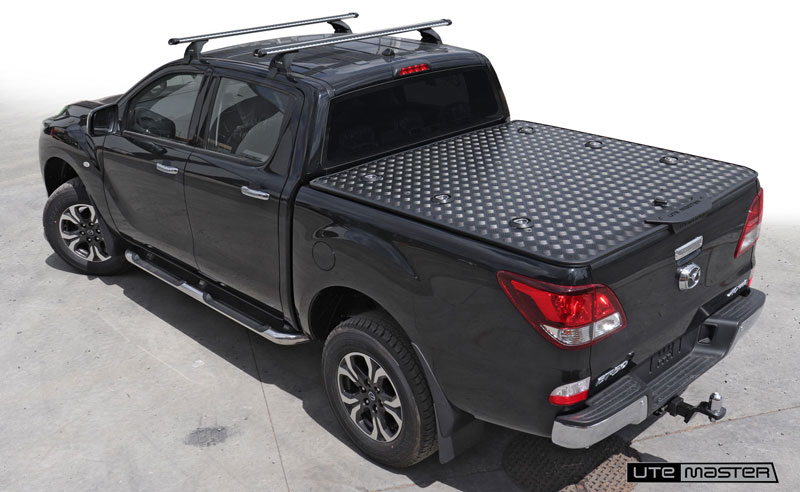

The Standard Load-Lid™ for the Mazda BT50 is the ultimate work-horse solution. Rated to 200kg so you can take more gear on adventures. Compatible with a Utemaster’s huge range of hard lid accessories so you can get more work done faster.
Part#LLX-FRB2
Please note: The Oasis Black Powdercoating and Lashing Rings pictured are optional accessories that are not included as standard with the above part number.
Our online Ute Builder allows you to spec up your model of ute with your dream setup.
This will also produce a quote on the spot for your built setup.
Head to the link below to get started:
The Load-Lid™ can easily be removed by undoing the x4 wing bolts holding it in place. This can be done in a matter of minutes and all you'll need is a mate to help lift it off. This gives you the space you'll need to carry objects such as a quad bike in your wellside.
Click on your model below to download the fitting instructions:
Download - Load-Lid to suit Factory Sports Bars
Fitting instructions shown are for under rail liner.
A standard Load-Lid™ weighs approximately 50-70kg.
The Load-Lid™ is supplied with gas stays which are at the optimum pressure for everyday use and are designed to help you open and close the lid.
However, they won't hold the lid open with a load on top. This is because it would require up to 200kg's of upwards pressure to open the lid with a load on it meaning that the operator would need to pull down with 200kg's of force to close the lid again which is not physically possible.
If you are carrying a Roof Top Tent and require access to the Tub, we recommend removing the locking plate on the Load-Lid™ handle so you can access the Tub through the tailgate (see below).
The Load-Lid™ comes standard with a locking plate under the handle which serves as an extra security measure. If required, you can remove it which will allow you to open the tailgate while the Load-Lid™ is closed. Depending on your lid model you may need to open the lid slightly to get the tailgate open.
If your Ute doesn't have a central locking tailgate we recommend that you install this to provide security without the plate.
The Utemaster Load-Lid™ has a dynamic load rating of 200kg, which means you can carry 200kg of gear when driving. The load rating requirement when driving is far greater than when the vehicle is parked.
When the vehicle is parked, the Load-Lid™ will support the weight of 2 people inside a Roof Top Tent.
Yes, the Load-Lid™ comes with a set of keys which allow you to lock the lid manually.
The Standard and Sports Bar Load-Lids are very easy to install and are be done without needing to drill into the tub. We recommend you check out the instructions listed further up this page so you can see how it works for your model.
If you are not confident in doing this yourself we can arrange fitting through one of our resellers.
If it is a spray-on liner you'll have no issues fitting the Load-Lid. If you have a plastic liner that goes over the top of the Tub you may need to cut it down so the lid sits correctly and does not leak.
You can put a load directly onto the aluminium treadplate surface.
Aluminium is very hard wearing and the Load-Lid™ comes standard coated in a teflon-based matte black powdercoat.
Some companies claim their roller covers or plastic lids have a load rating, but be aware that just because someone can stand on it while the vehicle is parked doesn’t mean it can carry a load.
If you can't fit your load on top, the Load-Lid™ can easily be removed by undoing the 4x wing bolts which hold it in place.
It can be done in a matter of minutes and all you'll need is a mate or two to help lift it off.
This gives you the space you'll need to carry objects such as a dirt bike in your tub. Please note removal process varies from model to model, however it is still super easy.
The Utemaster Load-Lid is compatible with a huge range of accessories so you can spec it to your lifestyle.
Click the link below to check them out:
