Utemaster cycle transportation systems for the Load-lid open up a whole new world of opportunities for your adventures! Now you can transport your gear safe and dry in the tray and your bicycles on top with ease!
Load-lid bike mounting systems come in two options, either Frame or fork mounted.
Please Note: The standard gas struts do not support the additional weight of bike carriers.

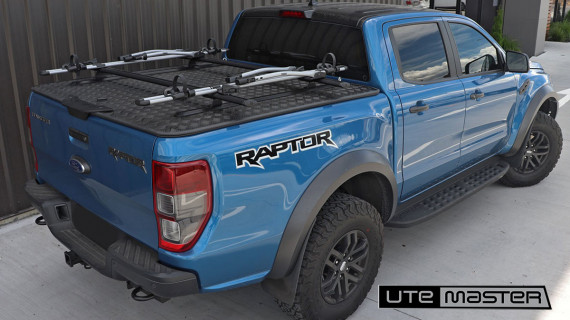

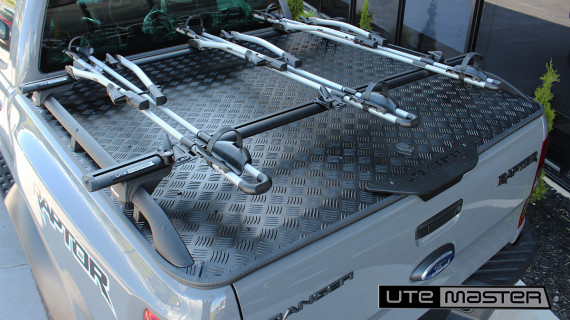

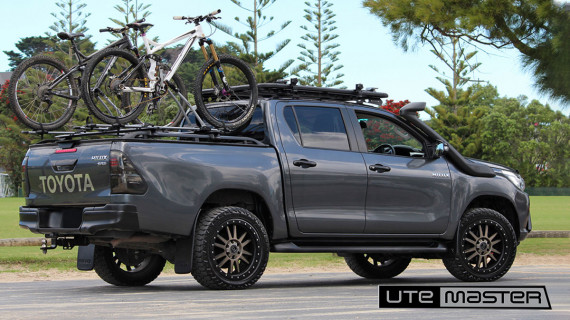

Frame Mount Bike Carriers
The bike rack system involves the use of two Cross Bars mounted to the Side Sails. By using the Bike Carrier System, you are not required to remove your front wheel. The carrier cradles your wheels and clamps onto the frame to keep the bike steady. The cross bars can also be easily removed from the side rails for use when you need to use it as a workhorse.
Part#LLBR (Cross Bars not included)

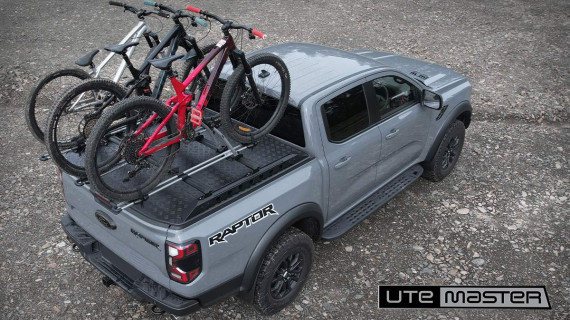

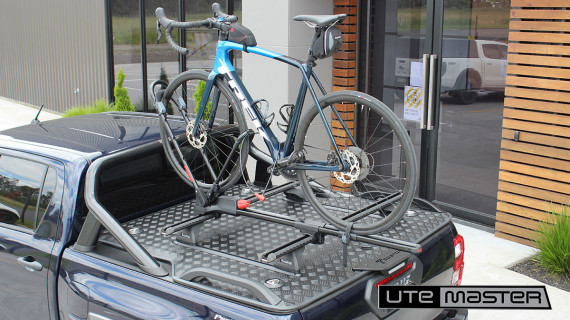

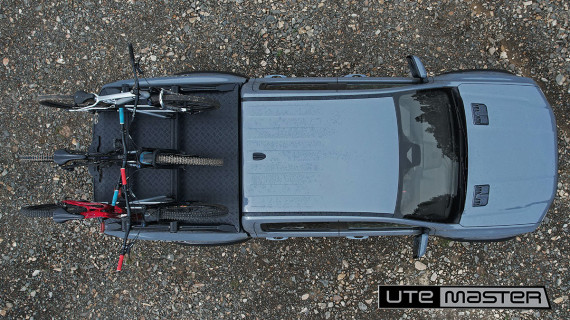

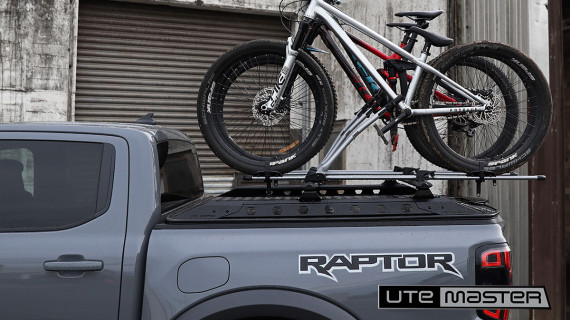

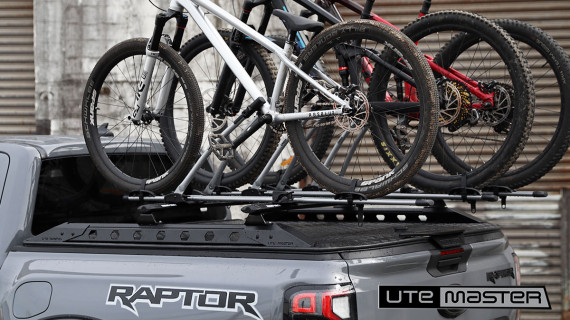

Fork Mount Bike Carrier
Mounted directly to the Load-Lid (no crossbars required)
Simply remove the front wheel and clamp the bike’s quick-release system into the fork mount.
Please note, if a thu-axle adapter is required we recommend the non-locking mount because the adapter cannot be locked.
We also recommend securing the rear wheel with tie points on the Load-Lid.
Non-locking Fork Mount cycle truck quick release:
Locking Fork Mount cycle truck quick release:
Fork Mounted Bike Carrier Adaptor
Does your bike have a Thru-Axle? If so you will need one of the adapter plates below:
Part#LLBR-FM12x100ADAPTER (12mm x 100mm)
Part#LLBR-FM15x100ADAPTER (15mm x 100mm)
Part#LLBR-FM15x110ADAPTER (15mm x 110mm)
Part#LLBR-FM20x110ADAPTER (20mm x 110mm)
The Utemaster T-Track can be mounted directly to the surface of the lid and are compatible with a wide range of accessories. If you are carrying multiple adult bikes the T-Track gives you plenty of freedom to adjust your load, meaning you can mount them further back from the cab.
For more information head to
